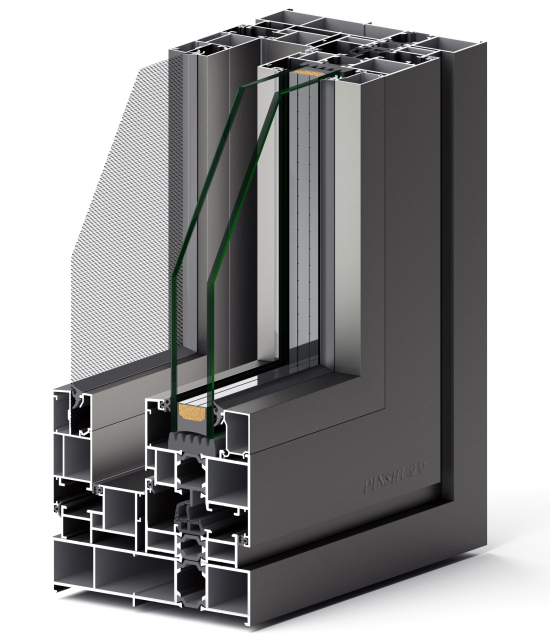

Structural data
- Window Frame Thickness:140mm
- Window Sash Thickness:74mm
- Profile Wall Thickness:1.8mm
- Window Sash Glass Thickness: 31mm
- Window Frame Visible Width (Inside/Outside):28.4mm / 28.4mm
- Window Sash Visible Width (Inside/Outside):79mm / 42mm
- Thermal break strip width: 20mm
Product Features
1.Standard System Window Design:
Offers various combination options, suitable for large window structures.
2.Profile Wall Thickness Greater than 1.8mm:
Local reinforcement enhances structural stability.

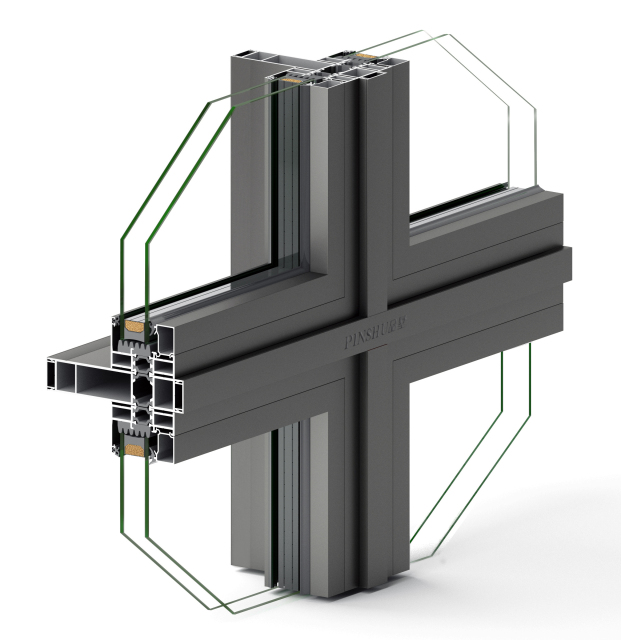

3.Pin & Adhesive filling for Corner and Mullion:
Increases strength and sealing performance.
4.Metal Reinforcement Plates and Gluing Process at Corners and Mullions:
Ensures tighter and flatter profile connections.
5.EPDM Foam Strips with Seamless Welding Frame Craft:
Provides continuous sealing without breakpoints, achieving ultimate sealing performance.
TD skyline (TianDong) system windows and doors
TD skyline system windows and door= High Quality + High Performance + High Versatility
- High Quality: High-quality Aluminum, high-quality glass, high-quality hardware, high-quality sealing components, advanced processing equipment, high-quality manufacturing and installation technology
- High Performance: High standard water tightness, air tightness, wind resistance, sound insulation and thermal insulation
- High Versatility:Universal profiles, hardware, sealing components, various auxiliary materials, manufacturing and installation technology, achieving different product effects through local variations
Applicability
Our products are adaptable to a wide range of architectural structures and styles, offering extensive design flexibility and creative potential.
Our products maximize the functionality of windows and doors, meeting or exceeding industry and national standards.
Our products fully consider the feasibility and convenience of window and door processing, installation, and maintenance.
While ensuring the performance requirements of windows and doors, different optimization combinations are employed to minimize material costs.
High-precision processing equipment and standardized manufacturing processes guarantee the quality of our products.
Systematic product design effectively reduces market risks, lowers production costs, ensures product quality, and enhances brand recognition.
